Home > BAR-CRADLE TRUCKS

Heavy Duty Bar & Pipe Cradle Trucks

At Standard Equipment, we provide standard and custom heavy duty bar cradle trucks that are excellent for the transportation and storage of pipe, bars, rails, and other long and heavy items. All of our bar and pipe cradle rucks have heavy-duty casters that provide easy turning and have greater mobility around corners and tight areas. We have bar and pipe carts and trucks with capacities ranging from 4,000 lbs to 10,000 lbs. If you are unable to find the right bar and pipe cradle truck that best suits your need, call us at 1-800-622-2692 to ask about our custom-design capabilities!

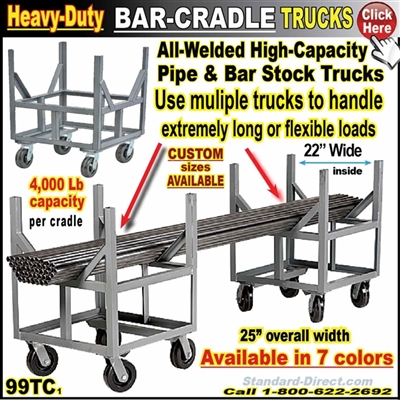

99TC BAR TRUCK 99TC BAR CRADLE TRUCK

Model No. 99TC ... Bar, Pipe and Rod Cradle Trucks are Highly Maneuverable. Transport and Storage Of Long Materials and move in tight work areas. Bar, Pipe and Rod Cradle Trucks are solid all welded steel angle iron construction and durable finish for long lasting strength. Trucks are designed with all 6" swivel phenolic casters for easy maneuverability. One unit may be used for transport of shorter length materials, and two units may be used for longer materials.

99TCC BAR TRUCK 99TCC BAR CRADLE TRUCK

Model No. 99TCC ... Bar, Pipe and Rod Cradle Trucks are Highly Maneuverable. Transport and Storage Of Long Materials and move in tight work areas. Bar, Pipe and Rod Cradle Trucks are solid all welded steel angle iron construction and durable finish for long lasting strength. Trucks are designed with all 6" swivel phenolic casters for easy maneuverability. One unit may be used for transport of shorter length materials, and two units may be used for longer materials.

99CR BAR TRUCK 99CR BAR CRADLE TRUCK

Model No.99CR...Super heavy duty bar cradle trucks. Capacity - 5,000 Lb. evenly distributed loads. Product Features: All welded construction (except casters). 3-CRADLES on the 62", 72" & 84" long trucks & 4-CRADLES on the 96" & 120" long trucks at 27" w x 14" high. 3" x 3/16" thick flat load supports. 3" channel steel frame. Overall height - 28". 6" x 2" Phenolic swivel casters on the four corners and 8"x 2.25" phenolic HD casters in the center allow for easy maneuverability. Casters are bolted on for ease of replacement. Standard Color: Gray (Optional colors available)

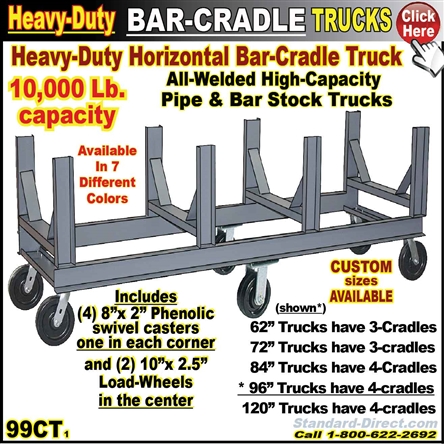

99CT Bar Cradle Truck 99CT BAR CRADLE TRUCK

Model No.99CT...Super heavy duty bar cradle trucks. Capacity - 10,000 Lb. evenly distributed loads. Product Features: All welded construction (except casters). 3-CRADLES on the 62", 72" long trucks & 4-CRADLES on the 84", 96" & 120" long trucks at 27" w x 14" high. 3" x 3/16" thick flat load supports. 4" channel steel frame. Overall height - 30". 8" x 2" Phenolic swivel casters on the four corners and 10"x 2.5" phenolic HD casters in the center allow for easy maneuverability. Casters are bolted on for ease of replacement. Standard Color: Gray (Optional colors available)

99CTT Bar Cradle Truck 99CTT BAR CRADLE TRUCK

Model No.99CTT...Super heavy duty bar cradle trucks. Capacity - 5,000 Lb. evenly distributed loads. Product Features: All welded construction (except casters). 3-CRADLES on the 62", 72" & 84" long trucks & 4-CRADLES on the 96" & 120" long trucks at 27" w x 14" high. 3" x 3/16" thick flat load supports. 3" channel steel frame. Overall height - 30". 8" x 2" heavy-duty swivel casters on the four corners. Casters are bolted on for ease of replacement. Standard Color: Gray (Optional colors available)

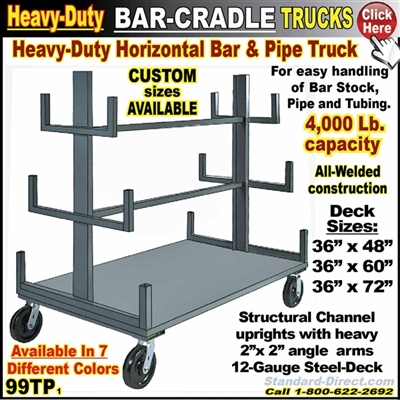

99TP Bar Cradle Truck 99TP BAR CRADLE TRUCK

Model No.99TP...Transports pipes and bars. Capacity - 4,000 lb., evenly distributed. Product Features: All welded construction, except casters. 650 Lbs. capacity per level (per side). Note: All capacities are based on evenly distributed loads. Durable 12 gauge steel platform, and 12 gauge caster mounts for long lasting use. Bolt on casters for easy replacement or upgrade. Casters are 2 rigid, 2 swivel superior cart tracking. Overall height is 59".
Platform height approx. 11". Usable arm spacing (horizontal) - each side: Top - 6-1/2", Middle - 9-1/2", Bottom - 14-1/2". Standard color: Gray.....1940, 1944

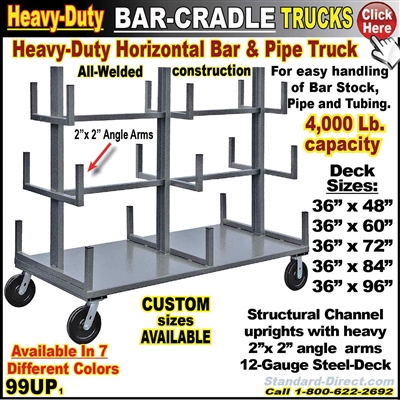

99UP Bar Cradle Truck 99UP BAR CRADLE TRUCK

Model No.99UP...Transports pipes and bars. Capacity - 4,000 lb., evenly distributed. Product Features: All welded construction, except casters. 650 Lbs. capacity per level (per side). Note: All capacities are based on evenly distributed loads. Durable 12 gauge steel platform, and 12 gauge caster mounts for long lasting use. Bolt on casters for easy replacement or upgrade. Casters are 2 rigid, 2 swivel superior cart tracking. Overall height is 59".
Platform height approx. 11". Usable arm spacing (horizontal) - each side: Top - 6-1/2", Middle - 9-1/2", Bottom - 14-1/2". Standard color: Gray.....1940, 1944

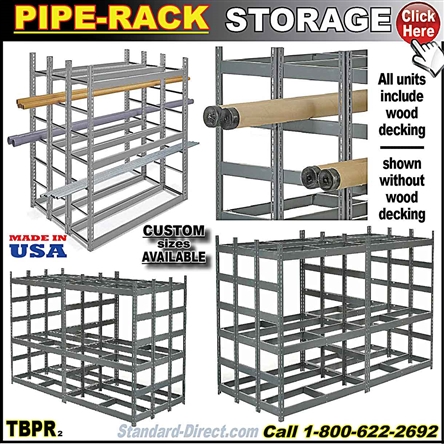

TBPR * BAR AND PIPE STORAGE RACKS TBPR * BAR AND PIPE STORAGE RACKS

MODEL No. TBPR... BAR AND PIPE STORAGE RACKS: Easy to set-up. Rivet shelving style assembly. Optional colors available...We make CUSTOM SIZE STORAGE RACKS..

TXBCT3 BAR CRADLE TRUCK 3-CRADLE TXBCT3 BAR CRADLE TRUCK 3-CRADLE

Model No.TXBCT3...Heavy duty bar cradle trucks. 5,000 Lb. or 10,000 Lb. capacity trucks evenly distributed loads. Product Features: All welded construction (except casters). 3-CRADLES on the 60" or 96"long trucks. Casters are bolted on for ease of replacement. Standard Color: Gray (Optional colors available) We also make custom size units.

TXBCT4 BAR CRADLE TRUCK 4-CRADLE TXBCT4 BAR CRADLE TRUCK 4-CRADLE

Model No.TXBCT4...Heavy duty bar cradle trucks. 10,000 Lb. capacity trucks evenly distributed loads. Product Features: All welded construction (except casters). 4-CRADLES on the 96"long truck. Heavy-Duty Phenolic casters are bolted on for ease of replacement. Standard Color: Gray (Optional colors available) We also make custom size units.

TXTP BAR CRADLE TRUCK TXTP BAR CRADLE TRUCK

Model No.TXTP...Transports pipes and bars. Capacity - 4,000 lb., evenly distributed. Product Features: All welded construction, except casters. 650 Lbs. capacity per level (per side). Note: All capacities are based on evenly distributed loads. Durable 12 gauge steel platform, and 12 gauge caster mounts for long lasting use. Bolt on casters for easy replacement or upgrade. Casters: 4 swivel. Overall height is 59". Standard color: Gray.....

TXUP BAR CRADLE TRUCK TXUP BAR CRADLE TRUCK

Model No.TXUP...Transports pipes and bars. Capacity - 4,000 lb., evenly distributed. Product Features: All welded construction, except casters. 650 Lbs. capacity per level (per side). Note: All capacities are based on evenly distributed loads. Durable 12 gauge steel platform, and 12 gauge caster mounts for long lasting use. Bolt on casters for easy replacement or upgrade. Casters: 2-swivels and 2-rigid. Overall height is 59". Standard color: Gray.....

TXTC BAR CRADLE TRUCK TXTC BAR CRADLE TRUCK

Model No.TXTC...Transports pipes and bars. Capacity - 3,000 to 4,000 lb., evenly distributed loads. All welded construction with a 20" bed height. Four swivel 6"x 2" Phenolic caster. Overall height is 34". Standard color: Gray.....
